PluginGuiMagic: A WYSWYG runtime design system for JUCE Plugins

JUCE is a framework, that allows to write cross platform audio applications and DAW Plugins. Adding the foleys_plugin_magic module allows to have a generated UI, that can be edited at runtime using advanced layout and styling options. It also adds visualisers to display signals, levels and spectra with no extra coding involved.

NEW: PluginGuiMagic is from Version 1.4.0 licensed under the permissive BSD V2 3-clause license. That means it can be used in any project, including closed source and commercial products.

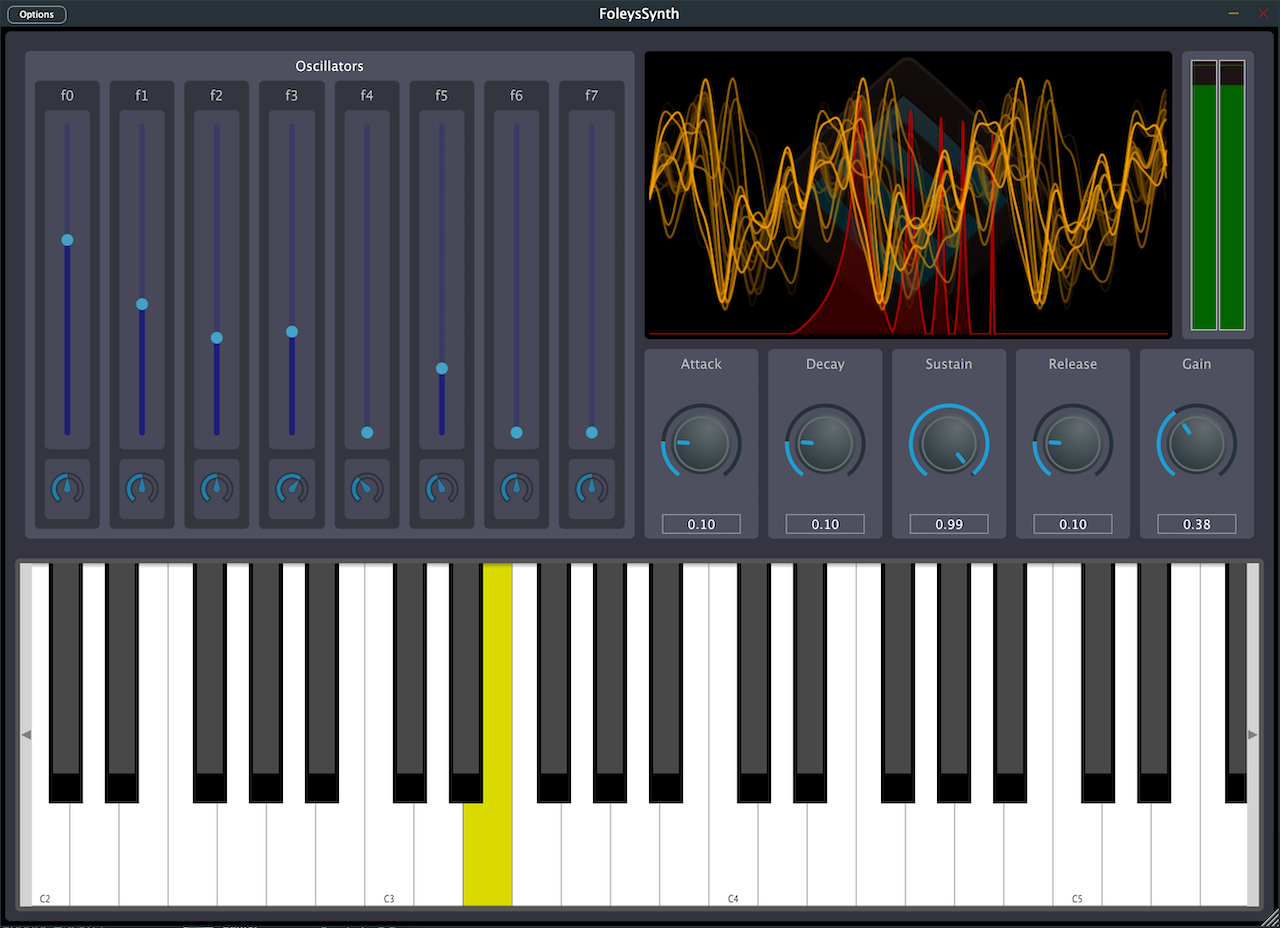

FoleysSynth Screenshot

PluginGuiMagic is not just for prototyping, the layout, visualisations and styling can be used in the final product.

Features

The module will display an editor panel attached outside of the ProcessorEditor you are editing. In three resizeable sections it displays the Components as tree structure (DOM), a property editor to adjust settings and colours in a CSS manor and a palette of available Components. You can add your own bespoke Components without modifying the code to be available for the designer.

These are some of the already available Components:

  • Slider
  • ToggleButton, TextButton
  • ComboBox
  • Label
  • XY-Dragger
  • LevelMeter, Plot
  • MidiKeyboardComponent
  • WebBrowserComponent

And those Visualisers are already present:

  • LevelMeter
  • Oscilloscope
  • Frequency Analyser
  • IIR FrequencyResponsePlot

Equalizer Screenshot

Documentation and support forum

You find the API documentation here: PluginGuiMagic (doxygen)

Support for PluginGuiMagic is available via the community driven forum. Please look around, sign up and ask questions, give feedback, report bugs, simply get in touch!

If you need personal assistance, this can only be given on a paid basis. Please write to developer@foleysfinest.com explaining your issue to get a quote.

Github repository - Downloading

Find the module to add to your project here: https://github.com/ffAudio/foleys_gui_magic You will see a green download button labelled “Code”. There are the URLs to clone the repository (recommended) or to download it as zip.

NEW in 1.4.0: The foleys_gui_magic repository contains the module in the folder modules. Just add the module in that subdirectory to your juce project.
In the repository you will also find the examples in the Examples folder and unit tests in the Tests folder.

Licenses

PluginGuiMagic is from Version 1.4.0 licensed under the permissive BSD V2 3-clause license. That means it can be used in any project, including closed source and commercial products.

BSD 3-Clause License

Copyright (c) 2019-2023, Foleys Finest Audio - Daniel Walz All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

  1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

  2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

  3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

Happy designing!
