AVClip is the abstract base class of displayable/playable clips. More...

#include <foleys_AVClip.h>

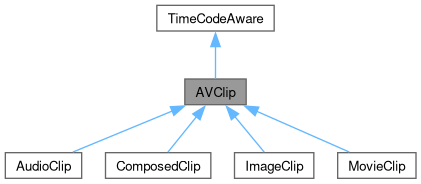

Inheritance diagram for AVClip:

Public Member Functions
	AVClip (VideoEngine &videoEngine)

virtual	~AVClip ()=default

virtual juce::String	getClipType () const =0
	Used to identify the clip type to the user.

virtual juce::URL	getMediaFile () const
	returns the original media file to restore

virtual juce::String	getDescription () const =0
	returns a string describing the clip.

virtual Size	getVideoSize () const =0
	returns the pixel size of the media as a tuple.

virtual double	getLengthInSeconds () const =0
	Returns the length of the clip in seconds.

virtual VideoFrame &	getFrame (double pts)=0
	Returns the frame for a certain timecode.

virtual void	render (juce::Graphics &g, juce::Rectangle< float > area, double pts, float rotation=0.0f, float zoom=100.0f, juce::Point< float > translation=juce::Point< float >(), float alpha=1.0f)=0
	This is the virtual render() method for OpenGL rendering.

void	renderFrame (juce::Graphics &g, juce::Rectangle< float > area, VideoFrame &frame, float rotation, float zoom, juce::Point< float > translation, float alpha)
	Renders a frame on the OpenGLView.

virtual bool	isFrameAvailable (double pts) const =0
	Checks, if a frame is available.

virtual juce::Image	getStillImage (double seconds, Size size)=0
	This returns a still frame on the selected position.

virtual bool	hasVideo () const =0
	Returns true, if this clip will produce visual frames.

virtual bool	hasAudio () const =0
	Returns true, if this clip will produce audio.

virtual double	getSampleRate () const =0
	This is the samplerate supplied from prepareToPlay and the sample rate this clip will produce audio and use as clock source.

void	setAspectType (Aspect type)

virtual double	getFrameDurationInSeconds () const
	Returns the duration of a frame in seconds.

virtual std::shared_ptr< AVClip >	createCopy (StreamTypes types)=0
	This returns a copy of the clip.

virtual bool	waitForSamplesReady (int samples, int timeout=1000)
	When rendering non realtime (bounce), use this to wait for background threads to read ahead.

virtual bool	waitForFrameReady (double pts, int timeout=1000)
	When rendering non realtime (bounce), use this to wait for background threads to read ahead.

const ParameterMap &	getVideoParameters ()

const ParameterMap &	getAudioParameters ()

virtual juce::TimeSliceClient *	getBackgroundJob ()

VideoEngine *	getVideoEngine () const

Public Member Functions inherited from TimeCodeAware
	TimeCodeAware ()=default

virtual	~TimeCodeAware ()=default

virtual double	getCurrentTimeInSeconds () const =0
	Return the clip's read position in seconds.

void	addTimecodeListener (Listener *listener)
	Register a TimecodeListener to be notified, when the visual frame changes.

void	removeTimecodeListener (Listener *listener)
	Unregister a TimecodeListener.

Static Public Member Functions
static void	addDefaultAudioParameters (AVClip &clip)

static void	addDefaultVideoParameters (AVClip &clip)

Protected Member Functions
void	addAudioParameter (std::unique_ptr< ProcessorParameter > parameter)

void	addVideoParameter (std::unique_ptr< ProcessorParameter > parameter)

Protected Member Functions inherited from TimeCodeAware
void	sendTimecode (int64_t count, double seconds, juce::NotificationType nt)
	Subclasses can call this to notify displays, that the time code has changed, e.g.

Detailed Description

AVClip is the abstract base class of displayable/playable clips.

They can provide video frames an/or audio streams.

To be compatible with juce's playback engines, they inherit PositionableAudioSource. Each AVClip is responsible to resample the audio to the sampleRate that is set in prepareToPlay. The audio stream acts as clock master.

When you created a shared_ptr of an AVClip, call manageLifeTime() on the VideoEngine, that will add it to the auto release pool and register possible background jobs with the TimeSliceThreads.

Constructor & Destructor Documentation

◆ AVClip()

AVClip ( VideoEngine & videoEngine )

◆ ~AVClip()

virtual ~AVClip ( )

virtualdefault

Member Function Documentation

◆ getClipType()

virtual juce::String getClipType ( ) const

pure virtual

Used to identify the clip type to the user.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ getMediaFile()

virtual juce::URL getMediaFile ( ) const

virtual

returns the original media file to restore

Reimplemented in AudioClip, ImageClip, and MovieClip.

◆ getDescription()

virtual juce::String getDescription ( ) const

pure virtual

returns a string describing the clip.

This could be the filename of the original media file

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ getVideoSize()

virtual Size getVideoSize ( ) const

pure virtual

returns the pixel size of the media as a tuple.

In some video files this can change at any frame.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ getLengthInSeconds()

virtual double getLengthInSeconds ( ) const

pure virtual

Returns the length of the clip in seconds.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ getFrame()

virtual VideoFrame & getFrame ( double pts )

pure virtual

Returns the frame for a certain timecode.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ render()

virtual void render	(	juce::Graphics &	g,
		juce::Rectangle< float >	area,
		double	pts,
		float	rotation = `0.0f`,
		float	zoom = `100.0f`,
		juce::Point< float >	translation = `juce::Point< float >()`,
		float	alpha = `1.0f`
	)

pure virtual

This is the virtual render() method for OpenGL rendering.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ renderFrame()

void renderFrame	(	juce::Graphics &	g,
		juce::Rectangle< float >	area,
		VideoFrame &	frame,
		float	rotation,
		float	zoom,
		juce::Point< float >	translation,
		float	alpha
	)

Renders a frame on the OpenGLView.

You can call this from the AVClip subclasses

References foleys::Crop, VideoFrame::image, foleys::LetterBox, and foleys::ZoomScale.

Referenced by ImageClip::render(), and MovieClip::render().

◆ isFrameAvailable()

virtual bool isFrameAvailable ( double pts ) const

pure virtual

Checks, if a frame is available.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ getStillImage()

virtual juce::Image getStillImage	(	double	seconds,
		Size	size
	)

pure virtual

This returns a still frame on the selected position.

Don't use this method for streaming a video, because it will be slow

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ hasVideo()

virtual bool hasVideo ( ) const

pure virtual

Returns true, if this clip will produce visual frames.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ hasAudio()

virtual bool hasAudio ( ) const

pure virtual

Returns true, if this clip will produce audio.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ getSampleRate()

virtual double getSampleRate ( ) const

pure virtual

This is the samplerate supplied from prepareToPlay and the sample rate this clip will produce audio and use as clock source.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ setAspectType()

void setAspectType ( Aspect type )

◆ getFrameDurationInSeconds()

virtual double getFrameDurationInSeconds ( ) const

virtual

Returns the duration of a frame in seconds.

This is the inverse of frame rate.

Reimplemented in ComposedClip, and MovieClip.

◆ createCopy()

virtual std::shared_ptr< AVClip > createCopy ( StreamTypes types )

pure virtual

This returns a copy of the clip.

Note that this will not work properly if the clip is not properly registered in the engine, because the copy will automatically be registered with the engine as well.

Implemented in AudioClip, ComposedClip, ImageClip, and MovieClip.

◆ waitForSamplesReady()

virtual bool waitForSamplesReady	(	int	samples,
		int	timeout = `1000`
	)

virtual

When rendering non realtime (bounce), use this to wait for background threads to read ahead.

Reimplemented in ComposedClip, and MovieClip.

◆ waitForFrameReady()

virtual bool waitForFrameReady	(	double	pts,
		int	timeout = `1000`
	)

virtual

When rendering non realtime (bounce), use this to wait for background threads to read ahead.

Reimplemented in MovieClip.

◆ addDefaultAudioParameters()

void addDefaultAudioParameters ( AVClip & clip )

static

References AVClip::addAudioParameter(), foleys::IDs::colour, and foleys::IDs::gain.

Referenced by AudioClip::AudioClip(), and MovieClip::MovieClip().

◆ addDefaultVideoParameters()

void addDefaultVideoParameters ( AVClip & clip )

static

References AVClip::addVideoParameter(), foleys::IDs::alpha, foleys::IDs::colour, foleys::IDs::rotation, foleys::IDs::translateX, foleys::IDs::translateY, and foleys::IDs::zoom.

Referenced by ImageClip::ImageClip(), and MovieClip::MovieClip().

◆ getVideoParameters()

const ParameterMap & getVideoParameters ( )

◆ getAudioParameters()

const ParameterMap & getAudioParameters ( )

Referenced by AudioClip::getNextAudioBlock(), and MovieClip::getNextAudioBlock().

◆ getBackgroundJob()

juce::TimeSliceClient * getBackgroundJob ( )

virtual

Reimplemented in MovieClip.

◆ getVideoEngine()

VideoEngine * getVideoEngine ( ) const

Referenced by ClipDescriptor::ClipDescriptor(), AudioClip::createCopy(), ComposedClip::createCopy(), ImageClip::createCopy(), MovieClip::createCopy(), ComposedClip::getUndoManager(), MovieClip::openFromFile(), ProcessorController::ProcessorController(), and AudioClip::setAudioFormatReader().

◆ addAudioParameter()

void addAudioParameter ( std::unique_ptr< ProcessorParameter > parameter )

protected

Referenced by AVClip::addDefaultAudioParameters().

◆ addVideoParameter()

void addVideoParameter ( std::unique_ptr< ProcessorParameter > parameter )

protected

Referenced by AVClip::addDefaultVideoParameters().
